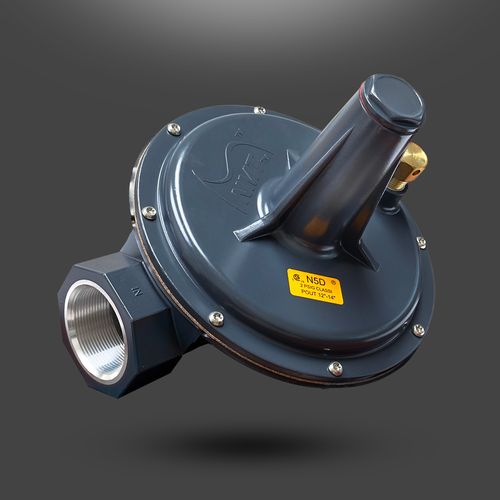

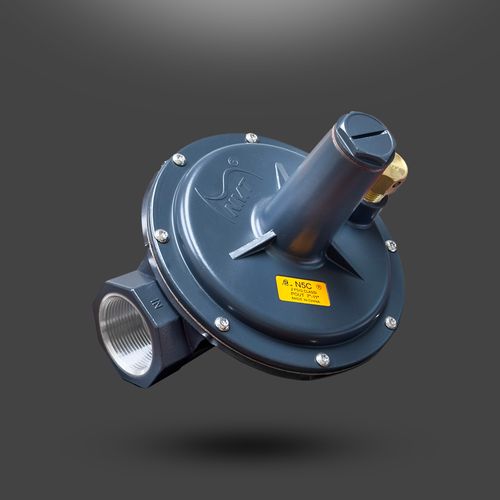

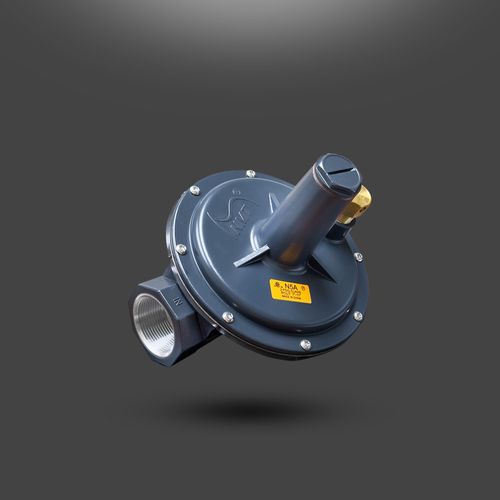

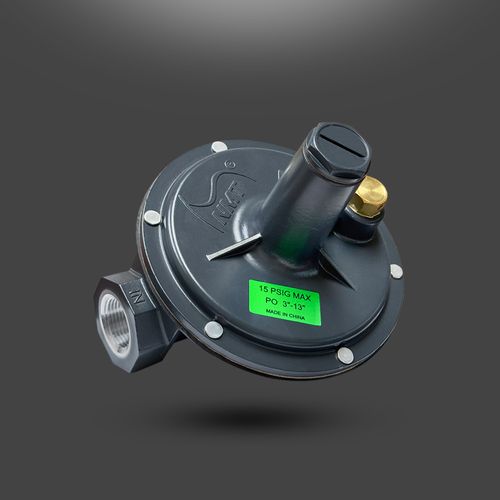

N5 Series
N5
Pipe Size: 3/8″ to 2″
Outlet Pressure Range: 7″ to 1.5 psig
The NMT® N5 Series gas regulator is an ANSI Z21.80 certified self-operating regulator with a vent limiting option for use in residential, commercial, and industrial applications. The N5 vent allows for indoor use without the need to pipe external vent lines. With the added benefit of extended corrosion resistance, the N5 allows for various applications where the best regulation performance is required.
Features
- ANSI Z21.80 certified
- Vent limiter option (No need to install vent pipe)
- Multi-position installation
- Extended corrosion resistance
- Up to 15 psig operating pressure
Specifications
- Gas types: Natural gas, LPG, air, other dry non corrosive gases
- Maximum inlet pressure: 2 psig; 15 psig max
- Maximum inlet pressure w/ vent limiter: 2 psig; 10 psig max
- Maximum emergency inlet pressure: 85 psig
